Description

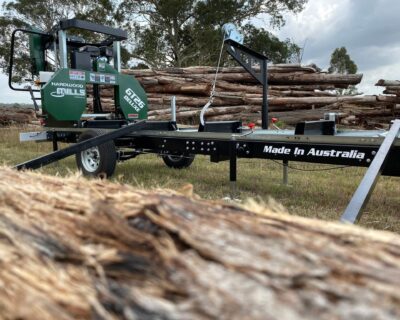

GT26 Deluxe Portable Sawmill Trailer Model Features

Power  14HP Kohler Pro Command Petrol Engine- Electric Start
Log Diameter Capacity 28″ (711.2mm)
Log Length Capacity  (5.2m)
Distance Between Blade Guides  24″ (609.6mm)
Maximum Cut Depth 18″ (457.2mm)
Last Cut Off Deck  1″ (2.5cm)
Maximum Cut Width  24″ (610mm) Square Cant or 24″ (610mm) Live Edge
Last Cut Off Deck  1″ (2.5cm)
Track Rail Construction  2.5″ x 4″ (63mm x 100mm) Galvanized Steel Rails
Track Log Bunks (Rectangle Tube Steel)  3″ x 6″ (75mm x 150mm) Powder Coated
Stainless Steel Log Bunk Cover   Optional
Leveling Feet   Set of 18 Included
Log Clamps   Screw Two Set
Head Design   2″x4″ (50mm x100mm) RHS 4 Post
Bandwheel Diameter  19″ (48cm)
Blade Size  Lenox 1.25″ Width x 146″ Length x 1″ Pitch (32mm x3708.4mm x 25.4mm)
Blade Engagement System  Centrifugal Clutch
Lubricant Tank   10 Litre Plastic
Finish  Powder Coat Paint / Galvanized Steel
Sawmill Warranty  2 Year Parts Warranty
Engine Warranty 3 Year Warranty (Offered directly through Kohler)
Shipping Weight   (450 kg)

The only ADR approved sawmill trailers available in Australia.

* The Australian Design Rules (ADRs) are national standards for vehicle safety, anti-theft and emissions. When a road vehicle is first used on Australian roads the relevant state or territory government’s legislation generally requires that it continue to comply with the relevant ADRs as at the time of manufacture.

KOHLER CH440 (14HP) SINGLE CYLINDER PETROL ENGINE ELECTRIC START

This Kohler CH440 petrol engine features a 4-cycle, slant cylinder design, with a cast iron cylinder bore and overhead valve for easy access. The Quad-Clean™ 4-stage air filtration system ensures only clean air enters the engine for maximum power and life of the engine. In addition, this engine is backed by a 3 year commercial warranty

Typical Applications :- Typical applications for this  Kohler engine include :- Concrete Trowells, water pumps, Hydraulic power packs etc

ENGINE SPECIFICATIONS

• Gross Horsepower of 14HP (429cc)
• Oversized muffler with heat shield
• Industry standard PTO face
• Quad-Clean™ heavy-duty cyclonic air cleaner
• Overhead valve design
• Easy access throttle, choke and shutoff
• Cast Iron Sleeve
• Shaft Size – 1 Inch Keyway Shaft
• Model Number – CH440
• 3 Year Commercial Warranty

Use your blade for approx. 2.5hrs and re sharpen. You will get up to 5-7 resharpens depending on what you are cutting. If you want to work for a full day take three blades with you and give them a re-sharpen that night and you are good for the next day.

Re-sharpening time for one blade is approx. 20mins.

Portable Sawmill Cutting Dimensional Timber with the GT26 Sawmill Band Saw

In this video, we take you through dimensional timber cutting with the GT26 sawmill.

Portable Sawmill Squaring Off Log and other cuts

Learn how to square off log cuts with the GT26 deluxe portable sawmill band saw.

Portable Sawmill 4″ By 2″ IRON BARK WITH Hardwood Mill

A live demo of iron bark being cut by the GT26 sawmill.

See our GT26 Deluxe portable sawmill – Ground Model

See  sawmill trailers
