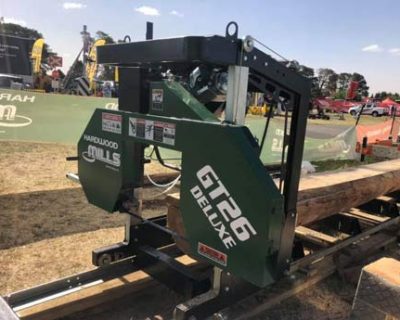

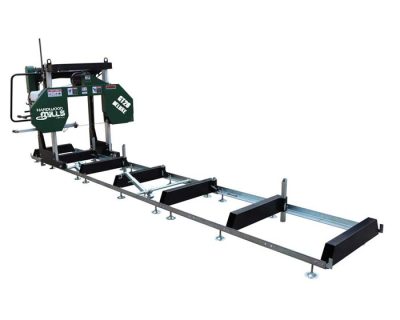

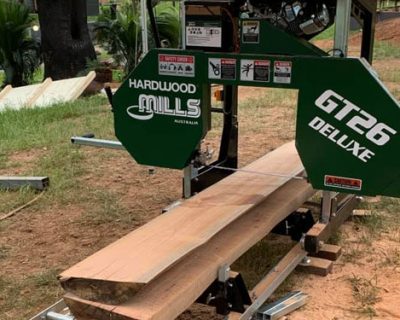

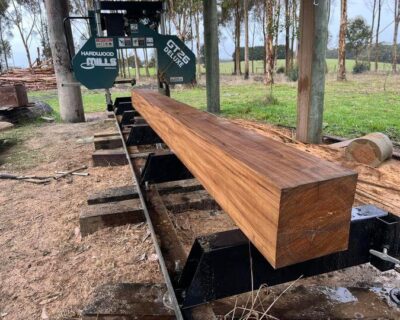

GT26 Deluxe Portable Sawmill – Ground Model

GT26 Deluxe Portable Sawmill – Ground Model

$6,250.00$8,450.00

  • *Please choose your Engine Type

    Reset options

    Engine Specifications

    • Gross Horsepower of 14HP (429cc)
    • Oversized muffler with heat shield
    • Industry standard PTO face
    • Quad-Clean™ heavy-duty cyclonic air cleaner
    • Overhead valve design
    • Easy access throttle, choke and shutoff
    • Cast Iron Sleeve
    • Shaft Size - 1 Inch Keyway Shaft
    • Model Number - CH440
    • 2 Year Commercial Warranty

    Engine Specifications

    • Yanmar Diesel Engine L100N model 10 HP
    • sawmill battery Electric start
    • Made in Italy
    • 2 Year warranty
    • Battery Supplied
    • Compact, Direct Injection Technology
    • Quick and Easy Start
    • A little engine built to stand up to hard work
    • Recoil Start w/ Automatic Compression release
    • Automotive Air Filter Design
    • Super Lo-Tone Muffler
    • Compact Design
    • Durability
    • 412mm x 471 x 494 (LxWxH)
    • Speed Options N5(3000rpm) or N6(3600rpm)

    Electric engine brand ABLE

    • Must be installed by a licensed electrician
    • Voltage: AC400V, 50Hz, 7.5Kw
    • 3 PHASE
    • Type MSE-132S2-2
    • INS.CLF
    • IP55
    • 55KGS
    • VOLT 400/690
    • 50 HZ
    • 7.5 KW
    • R/MIN 2925
    • A 13.7/7.91
    • COS .88
    • IE3 EFF (%):50 HZ-90.1 (100%) 90.7 (75%) 89.6 (50%)
    • S1
    • 6308 /6308
    • IM B3
    • IEC60034-1
    • FUJIAN ABLE ELECTRIC MOTOR GROUP CO LTD
    • SOFT START PLUG AND PLAY
    • EMERGENCY STOP
    • KEY LOCK OUT
    • 1  Year Engine Warranty
Finance
SKU: GT26 Category: Tag:

Description

GT26 Deluxe Portable Sawmill – Ground Model

Video walk around showing the stand out design features of this sawmill, particularly its ability for deep cuts.

Typical Applications :- Typical applications for this  Kohler engine include :- Concrete Trowells, water pumps, Hydraulic power packs etc

For added blade stability whilst operating your mill, our mills all come standard with a slide guide that slides in and out depending on your cutting width.

Use your blade for approx. 2.5hrs and re sharpen. You will get up to 5-7 resharpens depending on what you are cutting. If you want to work for a full day take three blades with you and give them a re-sharpen that night and you are good for the next day.

Re-sharpening time for one blade is approx. 5 mins.

*Extra blades can be purchased from us.

Deep cut portable sawmill
Portable Sawmill Squaring Off Log and other cuts

Learn how to square off log cuts with the GT26 deluxe portable sawmill band saw.

*Please note that all portable sawmills and trailers require assembly.

Tech Specs

Log Diameter Capacity : 711.2mm(28″)
Maximum board length : 4.9 metres
Maximum Cut Depth : 457.2mm(18″)
Maximum Cut Width :   609.6mm (24″)
Last Cut Off Deck :  2.5cm(1″)

Track Rail Construction :  63mm x 100mm(2.5″ x 4″) Zinc Coated Steel Rails
Track Log Bunks (Rectangle Tube Steel) :  75mm x 150mm(3″ x 6″) Powder Coated
Levelling Feet :  Set of 18 Included
Log Clamps : Set of 2 (Screw in)
Head Design :  50mm x100mm(2″x4″) RHS 4 Post
Band-wheel Diameter :  48cm(19″)
Blade Size : 32mm x 3708.4mm x 25.4mm (1.25″ Width x 146″ Length x 1Tpi “)
Blade Engagement System :  Centrifugal Clutch
Lubricant Tank :  10 Litre Plastic
Finish:  Powder Coat Paint / Zinc Coated Steel
Sawmill Warranty :  1 Year Parts Warranty
Shipping Weight : (680 kg)

What's Included



Coming Soon…

Footprint of mill

gt34 sawmill

Brochure

hardwood mills brochure

Optional Attachments for your Sawmill…
