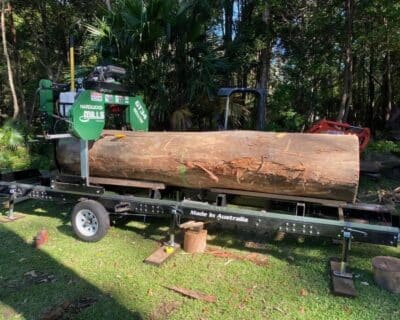

GT34 Deluxe Portable Sawmill – Trailer Model

GT34 Deluxe Portable Sawmill – Trailer Model

$12,025.00$14,035.00

  • *Please choose your Engine Type

    Reset options

    Engine Specifications

    • Powerful 23hp Honda v twin engine
    • Engine Type Air cooled 4-stroke OHV petrol engine, 90° V-twin design
    • Bore x Stroke (mm) 2 / 78 x 72
    • Displacement (cc) 688
    • Starter Type Electric Start
    • Horsepower Class (hp) 23Net Power (kw) 15.5 (20.8 HP) / 3600 rpm
    • Shaft Size 1 inch Keyway
    • Fuel Type Unleaded
    • Oil Capacity (Ltr) 1.9
    • Dimensions LxWxH (mm) 405 x 410 x 438
    • 3-year commercial warranty

    Engine Specifications

    • Yanmar Diesel Engine L100N model 10 HP
    • sawmill battery Electric start
    • Made in Italy
    • 2 Year warranty
    • Battery Supplied
    • Compact, Direct Injection Technology
    • Quick and Easy Start
    • A little engine built to stand up to hard worker
    • Recoil Start w/ Automatic Compression release
    • Automotive Air Filter Design
    • Super Lo-Tone Muffler
    • Compact Design
    • Durability
    • 412mm x 471 x 494 (LxWxH)
    • Speed Options N5(3000rpm) or N6(3600rpm)

    Electric engine brand ABLE

    • Must be installed by a licensed electrician
    • Voltage: AC400V, 50Hz, 7.5Kw
    • 3 PHASE
    • Type MSE-132S2-2
    • INS.CLF
    • IP55
    • 55KGS
    • VOLT 400/690
    • 50 HZ
    • 7.5 KW
    • R/MIN 2925
    • A 13.7/7.91
    • COS .88
    • IE3 EFF (%):50 HZ-90.1 (100%) 90.7 (75%) 89.6 (50%)
    • S1
    • 6308 /6308
    • IM B3
    • IEC60034-1
    • FUJIAN ABLE ELECTRIC MOTOR GROUP CO LTD
    • SOFT START PLUG AND PLAY
    • EMERGENCY STOP
    • KEY LOCK OUT
    • 1-Year Engine Warranty
Finance
SKU: N/A Category:

Description

  GT34 Portable Sawmill

For added blade stability whilst operating your mill, our mills all come standard with a slide guide that slides in and out depending on your cutting width.

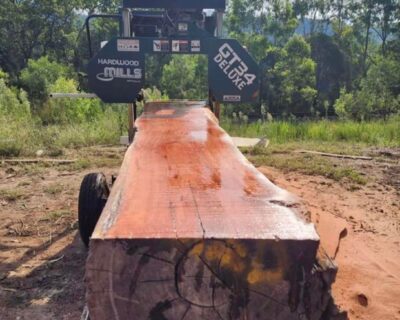

GT34 Portable Deluxe Sawmill Trailer Model

The GT34 Portable Deluxe Sawmill has arrived!

The GT34 Portable Deluxe Sawmill is an Australian designed portable bandsaw sawmill that is ahead of every other portable sawmill.

This machine will cut all Australian Hardwood and Exotic Woods.

What makes GT34 Portable Deluxe Sawmill a great machine is its large clearance over the blade, which is larger than any other machine currently on the market. This enables you to go directly to the heart of the log, so you can quarter saw, mill the stress out of the timber, or simply leave your slabs on the mill and just keep slabbing without having to tail out each slab.

The only ADR approved trailer sawmill trailers available in Australia.

* The Australian Design Rules (ADRs) are national standards for vehicle safety. When a road vehicle is first used on Australian roads the relevant state or territory government’s legislation generally requires that it continue to comply with the relevant ADRs as at the time of manufacture.

Tensioning the blade with a torque wrench on a GT34 portable sawmill

We also stock a range of accessories including:

Do not hesitate to contact us in regards to the machine and/or spares.

*Please note that all portable sawmills and trailers require assembly.

Tech Specs

Maximum board length : 4.9 Metres
Log Diameter Capacity: 865mm(34″)
Maximum Cut Depth: 457.2mm(18″ )
Maximum Cut Width: 738mm(29″) Square Cant or 738mm(29″) Live Edge
Last Cut Off Deck: 2.5cm(1″)

Track Rail Construction : 63mm x 100mm(2.5″ x 4″) Zinc Coated Steel Rails
Track Log Bunks: 75mm x 150mm(3″ x 6″) Powder Coated
Slide Guide : Adjustable blade support slide guide for more precise cutting
Levelling Feet : 6 wind down jacks
Log Clamps : Set of Two (Screw in)
Head Design : 50mm x100mm(2″x4″) RHS 4 Post
Band-wheel Diameter : 48cm(19″)
Blade Size : 32mm x 4013.2mm x 25.4mm(Lenox 1.25″ Width x 158″ Length x 1″ Pitch)
Blade Engagement System : Centrifugal Clutch
Lubricant Tank : 10 Litre Plastic
Finish : Powder Coat Paint / Zinc Coated Steel
Sawmill Warranty : 1 Year Parts Warranty
Shipping Weight : (1280 kg)

What's Included

GT34 DELUXE PORTABLE SAWMILL:

  • 2 x Long log rests (with roller)
  • 2 x Short log rests
  • 2 x Manual log clamps
  • 6m of track
  • USA made Bi-Metal blade x 1
  • Gravity fed water lubrication system (including bottle and valve)
  • Emergency stop system (Australian Safety Standard)
  • Door safety cut off switches
  • Guide blocks
  • Adjustable magnetic ruler
  • 6 x wind down adjustable jacks
  • Assembly and operation manual
  • 1 year warranty on sawmill
  • 2 year warranty on engine
  • Battery included on diesel and petrol options
  • Electric start on diesel and electric models
  • Track sweeps
  • Dead man throttle system

TRAILER:

  • ADR (Australian Design Rules) compliant
  • VTA (National Vehicle Type Approval)
  • Fully road registerable trailer (all states and territories )
  • Mechanical override brakes
  • Rated toe chain
  • D shackle
  • Multi-adaptor light plugs
  • Truck inspired Chassis
  • Designed to be upgradable to manual and hydraulic options
  • A frame towing connection
  • 14inch light truck wheels
  • Ford 5 stud pattern
  • VIN number stamped into the frame
  • Bolt in sawmill head restraint
  • Removable mud guards
  • Reflectors
  • Removable light boards

Footprint of mill

gt34 sawmill

Brochure

hardwood mills brochure
