GT34 Deluxe Portable Sawmill – Ground Model

Name: GT34 Deluxe Portable Sawmill - Ground Model
SKU: 9781
Availability: InStock

Store

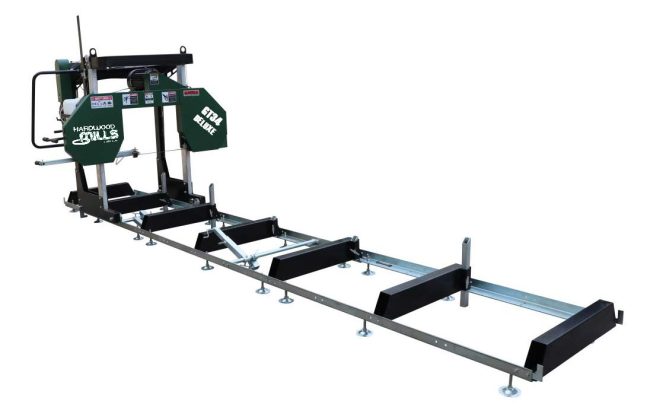

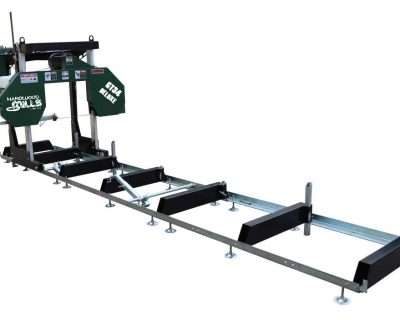

GT34 Deluxe Portable Sawmill with Electric Engine – Ground model

GT34 Deluxe Portable Sawmill – Ground Model

$8,490.00 – $10,500.00

Engine Type

Clear

*Please choose your Engine Type

Petrol

Diesel

Electric

Reset options
Engine Specifications
Powerful 23hp Honda v twin engine
Engine Type Air cooled 4-stroke OHV petrol engine, 90° V-twin design
Battery Supplied
Electric start
Bore x Stroke (mm) 2 / 78 x 72
Displacement (cc) 688
Starter Type Electric Start
Horsepower Class (hp) 23Net Power (kw) 15.5 (20.8 HP) / 3600 rpm
Shaft Size 1 inch Keyway
Fuel Type Unleaded
Oil Capacity (Ltr) 1.9
Dimensions LxWxH (mm) 405 x 410 x 438
3-year commercial warranty

Engine Specifications
Yanmar Diesel Engine L100N model 10 HP
Electric start
Made in Italy
2 Year warranty
Battery Supplied
Compact, Direct Injection Technology
Quick and Easy Start
A little engine built to stand up to hard worker
Recoil Start w/ Automatic Compression release
Automotive Air Filter Design
Super Lo-Tone Muffler
Compact Design
Durability
412mm x 471 x 494 (LxWxH)
Speed Options N5(3000rpm) or N6(3600rpm)

Electric engine brand ABLE
Must be installed by a licensed electrician
Voltage: AC400V, 50Hz, 7.5Kw
3 PHASE
Type MSE-132S2-2
INS.CLF
IP55
55KGS
VOLT 400/690
50 HZ
7.5 KW
R/MIN 2925
A 13.7/7.91
COS .88
IE3 EFF (%):50 HZ-90.1 (100%) 90.7 (75%) 89.6 (50%)
S1
6308 /6308
IM B3
IEC60034-1
FUJIAN ABLE ELECTRIC MOTOR GROUP CO LTD
SOFT START PLUG AND PLAY
EMERGENCY STOP
KEY LOCK OUT
1-Year Engine Warranty
Sawmill Optional Attachments

Finance

SKU: N/A Category: GT34 Deluxe Sawmills Tag: Hardwood Mills

Description

Please note that when purchasing Sawmills, Trailers and other heavy optional attachments, prices do not include the cost of shipping. You will be contacted by one of the Hardwood Mills team to arrange freight payment, following your purchase. Alternatively, if you would like a freight quote prior please contact us on 1300406984

For added blade stability whilst operating your mill, our mills all come standard with a slide guide that slides in and out depending on your cutting width.

GT34 Portable Deluxe Sawmill – Ground Model

This machine will cut all Australian Hardwood and Exotic Woods.

What makes GT34 Portable Deluxe Sawmill a great machine is its large clearance over the blade, which is larger than any other machine currently on the market. This enables you to go directly to the heart of the log, so you can quarter saw, mill the stress out of the timber, or simply leave your slabs on the mill and just keep slabbing without having to tail out each slab.

Tensioning the blade with a torque wrench on a GT34 portable sawmill

We also stock a range of accessories including:

Do not hesitate to contact us in regards to the machine and/or spares.

*Please note that all portable sawmills and trailers require assembly.

Tech Specs

Maximum board length : 4.9 Metres
Log Diameter Capacity: 865mm(34″)
Maximum Cut Depth: 457.2mm(18″ )
Maximum Cut Width: 738mm(29″) Square Cant or 738mm(29″) Live Edge
Last Cut Off Deck: 2.5cm(1″)

Track Rail Construction : 63mm x 100mm(2.5″ x 4″) Zinc Coated Steel Rails
Track Log Bunks: 75mm x 150mm(3″ x 6″) Powder Coated
Slide Guide : Adjustable blade support slide guide for more precise cutting
Levelling Feet : Set of 18 Included
Log Clamps : Set of Two (Screw in)
Head Design : 50mm x100mm(2″x4″) RHS 4 Post
Band-wheel Diameter : 48cm(19″)
Blade Size : 32mm x 4013.2mm x 25.4mm(Lenox 1.25″ Width x 158″ Length x 1″ Pitch)
Blade Engagement System : Centrifugal Clutch
Lubricant Tank : 10 Litre Plastic
Finish : Powder Coat Paint / Zinc Coated Steel
Sawmill Warranty : 1 Year Parts Warranty
Shipping Weight : (680 kg)
