GT40 Ultra Portable Sawmill – Trailer Model

Sale!

GT40 Ultra Portable Sawmill – Trailer Model

$20,000.00

  • *Engine Type

    Reset options
    Engine Specifications

    Warranty:3 year commercial warranty
    Engine Type: Air-cooled 4-stroke OHV
    Battery Supplied
    sawmill battery Electric start
    Bore x Stroke: 78 mm x 72 mm
    Displacement: 688 cm3
    Net Power Output*: 22.1 hp (16.5 kW) @ 3,600 rpm
    Net Torque: 35.6 lbs ft (48.3 Nm) @ 2,500 rpm
    PTO Shaft Rotation: Counterclockwise (from PTO shaft side)
    Compression Ratio: 9.3:1
    Lamp/Charge coil options: 2.7A, 17A, 26A
    Carburetor: Horizontal type, two barrel butterfly valve, internal vent
    Ignition System: Digital CDI with variable ignition timing
    Starting System: Electric
    Lubrication System: Forced lubrication
    Governor System: Mechanical
    Air Cleaner: Dual element
    Oil Capacity: 2.0 litres (2.1 U.S. qts)
    Fuel: Unleaded 86 octane or higher
    Dry Weight: 44 kg (96.8 lbs)

    KOOP 23hp Twin Cylinder Diesel Engine

    The Koop air cooled KD series engines are a proven reliable source of Diesel power, and the 23hp twin cylinder engine will not disappoint, we have fitted a multi mounting plate so you can ensure the KD series will adapt to your needs. It has a standard 25mm keyway output shaft along with a multi mounting plate coupled with electric start (ignition included).

    Shaft length Approx 80mm

    Low fuel consumption
    With our new tip-clearance fuel pump and bottom inertia injection technology, combined with our advanced combustion and high burn rate, the KD series fuel economy is far superior to petrol engines.

    Low noise
    Our newly -designed gear transmission structure, decreases vibration along with a lowed dB rating. Along with our improved patented air cleaner ensuring a clean quiet engine.

    Wide application area

    Various kinds of output forms are optional

    High output
    Vertical, V-type two-cylinder design, compact construction, large displacement= high output.

    Easy start
    Multi hole injection coupled with low gear starter motor, equals easy starts and reliable performance

    Battery Supplied
    sawmill battery Electric start

    Engine Specifications
    ModelKD292F
    Engine Type2-cylinder ,4-Stroke, Air-cooled
    Broke * Stroke[mm]92*75
    Displacement[L]0.997
    Compressed Ratio19:01
    Rated Speed[rpm]3000 3600
    Rated Power[Kw/rpm]14.0 15.0
    Rated Power[Hp/rpm]19.0 20.4
    Starting SystemElectric
    Lube Oil Capacity[L]2.75
    Fuel0#(summer), -10#(winter) diesel oil
    LubeSAE10W30 ( above CD grade )
    Power-take-offCrankshaft
    Overall Dimension [mm](L*W*H)582*462*582
    Net Weight [Kg]84
    Package Dimensions620x540x680mm - 90kg
    Electric engine brand ABLE
    • Must be installed by a licensed electrician
    • Voltage: AC400V, 50Hz, 11Kw
    • 3 PHASE
    • Type MSE-132S2-2
    • INS.CLF
    • IP55
    • 55KGS
    • VOLT 400/690
    • 50 HZ
    • 7.5 KW
    • R/MIN 2925
    • A 13.7/7.91
    • COS .88
    • IE3 EFF (%):50 HZ-90.1 (100%) 90.7 (75%) 89.6 (50%)
    • S1
    • 6308 /6308
    • IM B3
    • IEC60034-1
    • FUJIAN ABLE ELECTRIC MOTOR GROUP CO LTD
    • SOFT START PLUG AND PLAY
    • EMERGENCY STOP
    • KEY LOCK OUT
    • 1-Year Engine Warranty
Finance
SKU: N/A Category:

Description

Please note that when purchasing Sawmills, Trailers and other heavy optional attachments, prices do not include the cost of shipping. You will be contacted by one of the Hardwood Mills team to arrange freight payment, following your purchase. Alternatively, if you would like a freight quote prior please contact us on 1300406984

GT40 Ultra Trailer Model Bandsaw Sawmill

  • 3 Tonne Rating
  • ADR‑compliant
  • VIN Supplied

The vehicle towing the trailer will require an Electric Brake Controller. These are available from most reputable spare parts outlets.




INTRODUCTION

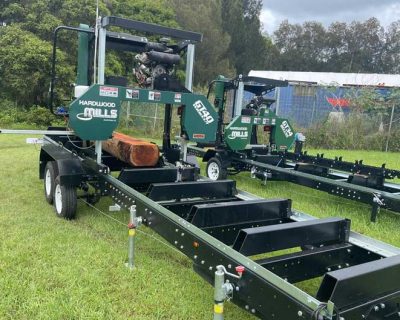

Meet the GT40 Ultra road registerable Trailer Model Portable Sawmill – an industrial-strength bandsaw sawmill engineered from the ground up to cut the hardest and heaviest Australian logs. Designed for milling professionals and serious hobbyists alike, this machine boasts an unrivalled log capacity, handling logs up to 40 inches (1016 mm) in diameter. Its impressive cut capacity delivers boards up to 1016 mm (40″) wide, while offering a standard log length of 7 meters – optional .95-meter fold down track extensions are available if required. (Max 2 per trailer)Built to tackle Australia’s toughest hardwoods with ease, the GT40 Ultra’s rock‑solid construction and advanced milling features ensure reliable, high-performance operation in even the most demanding conditions.

Optional upgrades such as hydraulics can be added at any time, making this sawmill a truly adaptable solution for expanding milling needs.

FEATURES

Massive Log Capacity & Engine Options

Massive Log Capacity:

  • Designed to process logs up to 40″ (1016 mm) in diameter.
  •  Standard cutting capacity of 7 meters – with the option 1 m track extension.
  • Heavy‑duty bed capacity rated at 6 tons.

Powerful Engine Options:

  • Petrol: Honda VTWIN GX690, 23 HP with electric start-3-year commercial warranty
  • Diesel: KOOP 23 HP VTWIN with Electric Start. 1-year commercial warranty
  • Electric: 11 kW 3‑phase Electric Motor. 1-year commercial warranty.

(High‑torque performance ensures efficient milling of dense hardwoods and massive logs.)

Sawmill Carriage Features

Structural Integrity
 • Structural Integrity: 125 mm x 50 mm welded Bandsaw Yoke.
 • Reinforced 4‑Post Head Design featuring hinged doors and robust steel safety guards for exceptional rigidity and operator protection.

Bed Features

Dynamic Head Movement:


• Supplied with Power Lift System. Electric Up/Down for precise depth of cut adjustments.

• Manual Head Forward/Reverse (Optional Power Feed upgrade available).

  • Standard Centrifugal Clutch for smooth, safe power transfer.
  • Integrated Magnetic kerf Ruler supplied in metric and imperial. (Optional Digital Scales available)
  • Stainless-Steel Bolts

• Lubrication: Gravity‑Fed, valve‑controlled Water Lubrication System and 10 Litre Lube Tank Standard. Optional Insta‑flow “Automatic Valve” available).

Blade Guide System:

  • Roller guides for blade stability.
  • The slide guide system allows the sawmill’s blade guides to be adjusted closer to the log, enhancing stability and cutting precision
  • Blade tension system uses a T-handle attached to an Acme-threaded 1″ rod. For fine adjustments, a torque wrench can be applied to the T-handle, allowing precise blade tensioning

Safety Features

Interlocked Guards & Door Safety:
Immediate power cut‑off when guards/doors are opened during operation.

Deadman Throttle System:
 • Automatically disengages the clutch to stop the band wheels from spinning when the throttle is released.

Emergency Stop:
 • Instantly cuts power in hazardous situations, when activated.

Operator Positioning:
 • Designed to create a safe reactive distance via reach arm distance for optimal operator safety. The robust frame also creates a barrier between the operator and the spinning blade.

​Hardwood Mills’ sawmills feature a centralized control panel on one side, providing safe access to all functions—including throttle, blade lubrication, tensioning, adjustable slide guides, and emergency stop—while positioning the operator away from sawdust discharge.

Band Wheels

  • Balanced Steel Wheels.
  • Wheel Diameter: 19 inches
  • Massive Cutting Throat. 483 mm)
  • Wheel Type: Belted for Reduced Vibration.
  • Additional Covers: Hinge Blade Wheel Covers; Three‑piece All Metal Covers; powder coated steel blade guards.

Trailer Features

 ADR-Compliant Build – Engineered to meet Australian road safety and design standards.
 Full Road Registration – Registerable in all Australian states and territories.
 Heavy-Duty Construction – Designed for 3-ton capacity with reinforced chassis and components.
 Electric Brakes on All Wheels – Ensures superior stopping power and control.
 LED Lighting & Safety Chains – Enhances visibility and towing security.
 Spare Wheel Included – Conveniently attached to the drawbar.
 Stationary Trailer Rating: 6 TONNES with Jack Support.
 Removable Mudguards – Provides additional flexibility.

GT40 portable sawmill

Truck-Inspired Chassis Design Tandem Axle Trailer

Built to a High-Quality ADR Standard

The 3.0T Tandem Axle Trailer is designed and built to meet Australian Design Rules (ADR), ensuring reliability and durability. The trailer is fully road-registerable in all Australian states and territories and is supplied with a Vehicle Type Approval (VTA) and a Vehicle Identification Number (VIN).

TRANSPORT LOCK-DOWN KIT

The trailer is equipped with a sawmill head lock-down kit, ensuring safe and secure transportation of the sawmill head.

 Four connection brackets firmly secure the sawmill to the trailer bed.
 12mm bolts provide a strong and reliable hold.

This lock-down system ensures maximum stability and safety while transporting your sawmill.

BUILT TO LAST. ENGINEERED FOR PERFORMANCE.

Truck-Inspired Tandem Axle Trailer is a heavy-duty trailer built to handle demanding loads with ease.

  • Fully Registerable Across Australia
  • Built to Australian Safety & Compliance Standards

*Please note that all portable sawmills and trailers require assembly.

Specifications

DIMENSIONS:

 Overall Length: 9,131mm
 Overall Width: 2,075mm
 Bed Height: 600mm
 Height with Sawmill Head Fitted: 2,598mm
 Bed Width: 1,100mm
 Bed Length: 8,000mm

STRUCTURAL COMPONENTS:

 Drawbar (C-Section Type): 150x50x6mm
 Chassis: 200x100x6mm
 Aggregate Trailer Mass (ATM): 3,000Kg
 Tare Weight: 1,600Kg
 Tow Hitch: 50mm

AXLES & SUSPENSION:

 Axles: Dual
 Suspension: Rocker Roller Leaf Springs (Rated 3 TON)
 Axle Size: 45mm (1,600Kg) x 2
 Hubs: Heavy-Duty 6-Stud

WHEELS & TYRES:

 Wheel Type: 14” Sunraysia Steel Wheels
 Stud Pattern: Ford 5 x 114.3mm
 Tyre Size: 185R14C
 Tyre Rating: 850Kg per tyre
 Spare Wheel: Mounted on Drawbar

BRAKING & SAFETY SYSTEMS:

 Braking System: Electric Brakes on All Wheels
 Hand Brake: Cable Type
 Safety Chains: Rated 5,000Kg
 Electric Brake Away System

ELECTRICAL & LIGHTING:

 Electrics Plug: 7-Pin (Round or Flat)
 Lights: LED 12V – ADR-Compliant

ADDITIONAL EQUIPMENT:

 Levelling Legs: 10 x 2,500Kg

What's Included

  • Power lift
  • Gravity feed Blade Lubrication System with Lube Tank
  • Manual Adjustable Long Log Rests with Rollers x 3
  • Small Log Rests x3
  • Manual Log Clamps x3
  • Blade Guide System Components
  • Slide guide
  • Operator Safety Features (Interlocked Guards, Deadman Throttle, Emergency Stop)
  • Magnetic Ruler
  • Blade Tension System
  • Roller Guides
  • Leveling Jacks x10
  • Light bar
  • Rocker roller suspension
  • Spare tyre
  • Electric break away system
  • Removable mud guards
  • Safety chains
  • Instruction Manual and Assembly Guide

Footprint



TRAILER GT40 GENERAL ASSY
