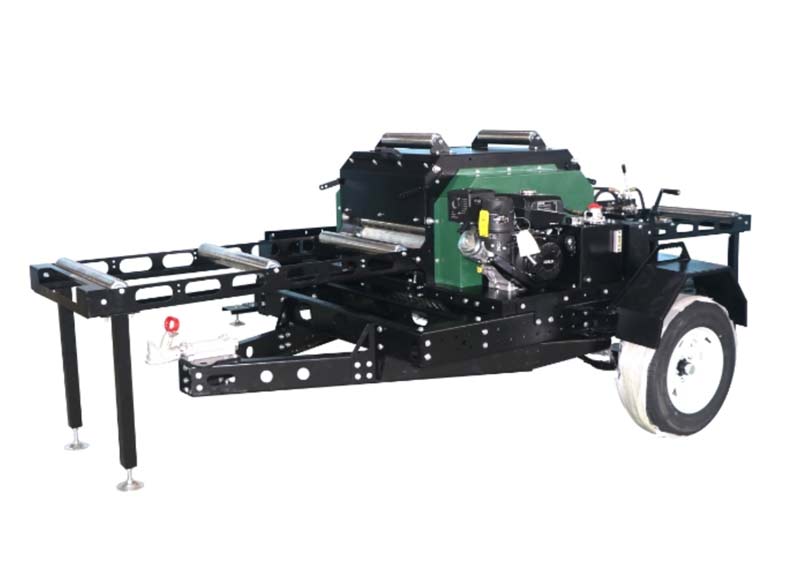

GTE24 Edger With Electric Start Trailer Model
TheGTE 24 EdgerfromHardwood Mills Australiais a powerful, professional-grade board edger designed to streamline your timber production and maximise your yield.
Equipped with a dual-blade system (1 fixed, 1 movable) optional ripper kit , laser guides, return rollers, and a folding board fence, this machine allows you to edge slabs boards quickly and accurately — turning offcuts into straight, saleable timber , Dimensional Timber eg 100x50mm,100x25mm 150x50mm many different sizes .
Choose from petrol or electric power options.
Boost Sawmill Production by 50–70%
Adding a dedicated edger to your operation can increase your sawmill’s production and dimensional timber yield by50–70%.
With theGTE 24, you can process boards at29 feet per minute, recover more usable timber per log, and dramatically reduce handling time — freeing your main sawmill to focus on log breakdown.
*Please note that all portable sawmills and trailers require assembly.
Specifications
Feature
Specification
Min. Cutting Length
650 mm
Min. Cutting Height
10 mm
Max. Cutting Thickness
65 mm
Max. Cutting Width
500 mm
Max. Feeding Width
600 mm
Blade Diameter
305 mm (12″)
Blade Speed
2,100 RPM
Blade Quantity
2 (1 fixed, 1 movable) Option Ripper Kit
Feed Speed
29 feet per minute
Laser Guides
2× High-Visibility Red Lasers
Return Rollers
2× Heavy-Duty
Folding Board Fence
Yes (adjustable)
Drive Belts
850 Li × 2 pcs, 780 Li × 1 pc
Net Weight
674 kg (base), 808 kg (with trailer)
Overall Dimensions (base)
4,200 × 1,500 × 1,500 mm
Overall Dimensions (trailer)
4,200 × 2,200 × 1,500 mm

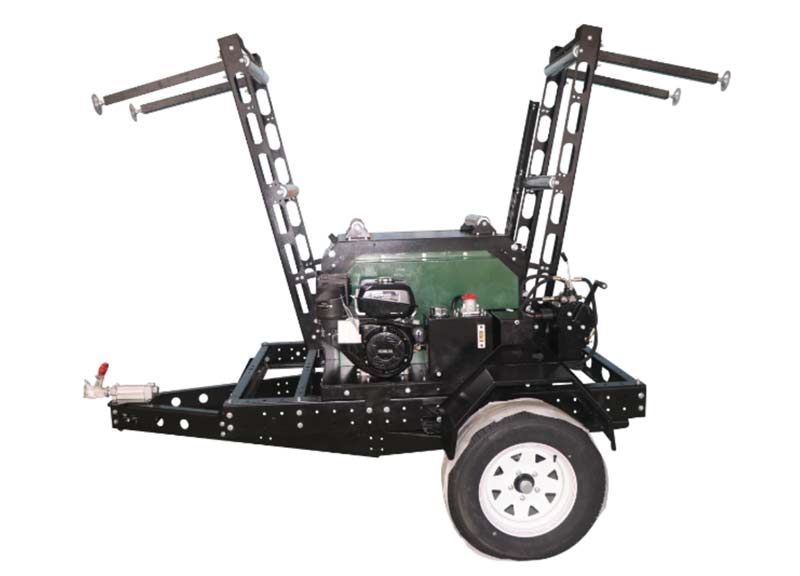

Trailer Features
Trailer Features:
Heavy-duty 150×100×6mm C-section frame
ADR-approved LED lights, safety chains, mudguards
14” light truck wheels for serious towing
Drop-leg stabilisers and jockey wheel for setup
Dimensions (with trailer): 4,200 × 2,200 × 1,500 mm Weight (with trailer): 808 kg
